Multiple 5,000 gallon series tanks with WiFi water level measurement

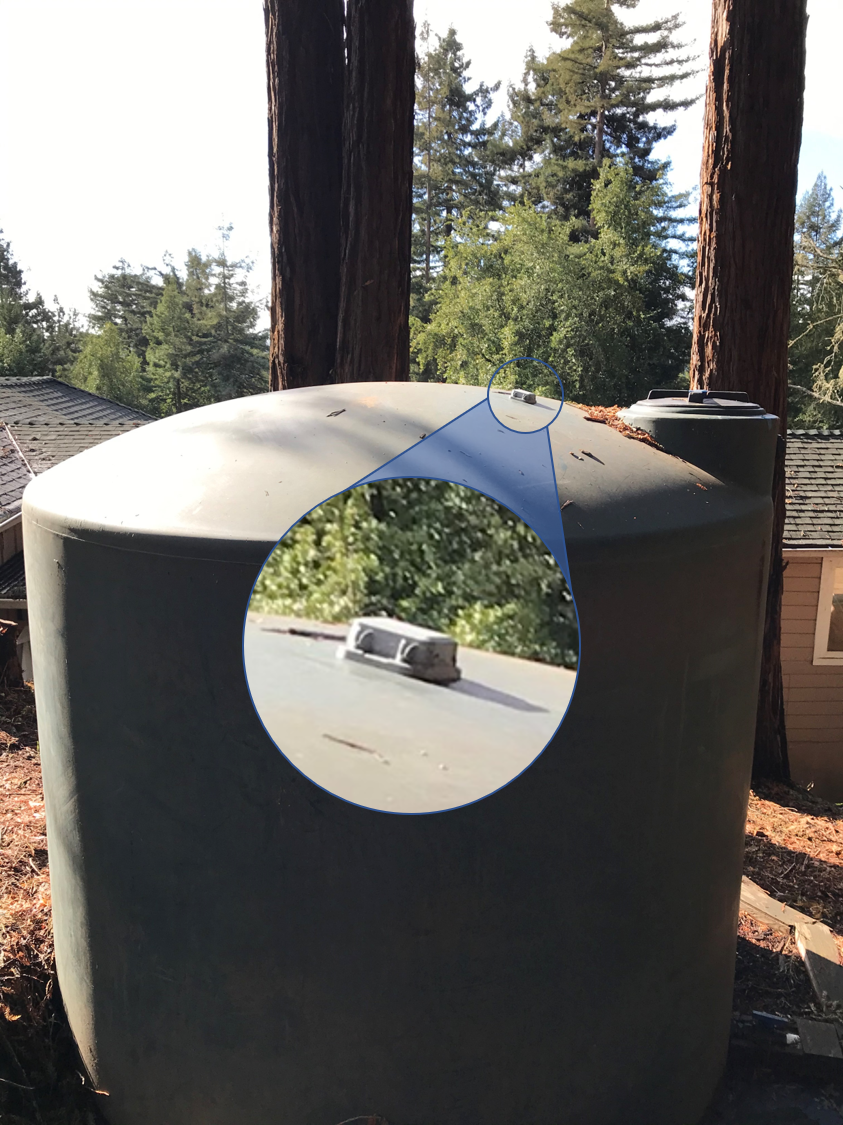

A 5,000 gallon tank with WiFi water level measurement.
A remote spring box with LoRa water level measurement and water use measurement, and a closeup of the Endpoint.
Two parallel 5,000 gallon tanks with WiFi water level measurement.
Parallel Tanks with Starter system water level measurement.
A 5,0000 gallon tank with WiFi water level measurement
A 5,000 gallon tank with Starter system water level measurement.
A 1,0000 gallon tank with WiFi water level measurement
Two parallel 5,000 gallon tanks with WiFi water level measurement.
A 1,000 gallon steel tank with WiFi water level measurement. Note the endpoint is mounted on a steel tank mount.
A 2,500 gallon tank with WiFi water level measurement.
A 5,000 gallon tank with WiFi water level measurement.
A 5,200 gallon cistern with WiFi water level measurement.
A Springbox with LoRa water level measurement.
A 60,000 gallon tank with supervised water level measurement. The water level measurement is used to turn off the 3HP pump that fills this tank, so it shuts off before the tank overflows.
Supervised LoRa endpoint close-up.
This Supervised LoRa Hub with an External Mount on a nearby woodshed with good WiFi. This Hub serves two supervised LoRa endpoints, a supervised pump controller, and a third LoRa endpoint.
Three 5,000 gallon tanks in parallel with LoRa water level measurement.
A Supervised pump controller with a LoRa endpoint. City water is pumped from here up the hill 800’ to a 5,000 gallon tank. Necessary when the well’s do not provide enough water. A battery powered remote float switch with a LoRa endpoint triggers the water flow.
Lower well with pulse output meter and LoRa pulse output endpoint for characterizing well output.
Upper well with pulse output meter and LoRa pulse output endpoint for characterizing well output.
A Supervised LoRa battery powered float switch endpoint.
Three remote tanks each with LoRa water level measurement. A battery powered float switch triggers water filling on the closest tank.
A Supervised LoRa Hub with an External Mount (tan box) with endpoints 200’ to 1200’ away. This Hub serves three supervised LoRa water level measurement endpoints, a supervised LoRa pump controller, and two supervised LoRa pulse output endpoints.
An external hub mount (tan lower center box) for a WiFi HydriQ water level measurement system.
An external hub mount (tan center box) for a WiFi HydriQ water level measurement system.
An original WiFi water level measurement installation. Different packaging, same great hardware. Notice the (old) methods for water level detection- a float system, a ladder.
Two tank system each with an original WiFi water level measurement installation and USB power upgrade. Different packaging, same great hardware.
An original WiFi water level measurement installation with a USB power upgrade. Different packaging, same great hardware.
An original underground tank WiFi water level measurement installation. Different packaging, same great hardware.
